Máy tính hàng hải PPC-120T-RL

The 13th Gen Intel® Core™ Raptor Lake –P processor Marine Panel Computer System

Giá: Liên hệ

Tính năng chính:

12.1″ 1280 x 800, 16.7M Color PCAP Display
The 13th Gen Intel^® Core™ Raptor Lake – P i7/i5/i3/U300E processor
2 x DDR5 supported, up to 64GB Max
2 x M2 SATA and NVMe supported
IO Port
- 4 x 2.5GbE RJ45 Ethernet
- 1 x USB 3.2 Gen 2x1 (10Gbps) Type C, with ALT mode
- 2 x USB 3.2 Gen 2x1 (10Gbps) Type A
- 1 x RS232/422/485 isolated
- 1 x Fan/buzzer external connector
Support Intel^® vPro and TPM 2.0 (vPro is not available for i3 SKU)
24V power input with wide supply voltage 18 ~31 V
Low dimming nearly 0% ~ 100% (0.1~100)
Auto Dimming and manual brightness Touch Button
75 x 75 VESA holes with M4 threads.
Certificated CE / FCC Class A
IEC60945/IACS E10 Maritime standards compliance
IP65 front bezel
IP20 back system

Báo giá sản phẩm

PDF

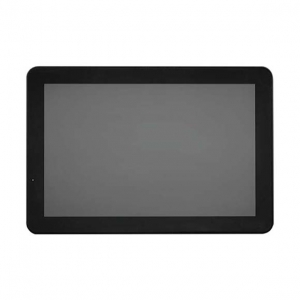

PPC-120T-RL is a 12.1” Marine Panel PC built with an IP65 front bezel design and based on 13th Gen Intel^® Core™ Raptor Lake–P processor. Enhance customer experience with multi-touch PCAP with AR coating and support the brightness control with Auto Dimming and a manual brightness control button. The dimming level is from 0.1% to 100%. The board connection consists of four gigabit Ethernet LAN ports, an isolated RS-232/422/485 port, a dual USB Type A port, and a Type C with DP ALT mode.

PPC-120T-RL is built according to DNVGL-CG-0339 Standard, IEC60945, and IACS-E10 to meet the marine industry's international requirements with an operating temperature range from -10°C to 55°C and a wide power input range from 18V to 31V for use in harsh maritime environments.

OS System supports Windows 10/11/Linux

CPU Support	The 13th Gen Intel^® Core™ Raptor Lake – P Embedded i7/i5/i3/U300E processor -Intel^® Core™ i7-1370PE, 24M Cache, up to 4.80 GHz, vPro supported -Intel^® Core™ i5-1350PE, 12M Cache, up to 4.60 GHz, vPro supported -Intel^® Core™ i5-1340PE, 12M Cache, up to 4.50 GHz, vPro supported -Intel^® Core™ i3-1320PE, 12M Cache, up to 4.50 GHz -Intel^® Processor U300E, 8M Cache, up to 4.30 GHz

Main Memory	2 x DDR5, up to 64GB Max, non-ECC and un-buffered

Storage Device	2 x M2 support 2242 or 2280 (SATA and NVMe)

Touch Panel	12.1” WXGA TFT-LCD 1280 x 800/TR12ms/TF 8ms/600nits 1CH 6/8bit LVDS 10 points P-Cap multi-touch glass with AR coating Resolution:1280x800 Color: 262K / 16.7M Brightness: 600 cd/m² Viewing Angle: 88(T), 88(B), 88(L), 88(R)

Display Output	Type C support ALT mode, resolution up to 4096*2160 60Hz

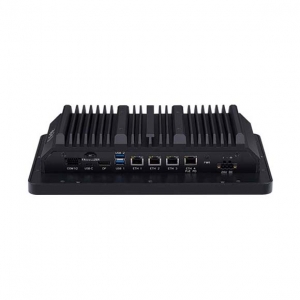

I/O Interface	1 x 24V power input with wide supply voltage 18 ~31 V 1 x Fan/buzzer connector: 2x4 pin Phoenix terminal blocks 1 x RS232/422/485 isolated Serial port 1 x Type C connector, support USB 3.2 Gen 2x1 (10Gbps) with ALT mode 2 x USB Type A connector, support USB 3.2 Gen 2x1 (10Gbps) 4 x RJ45 Ethernet ports can support 100Mb/s, 1GbE and 2.5GbE (Wake on LAN)

Power requirement	Input voltage: 24VDC (+30% / -25% voltage variation) Reverse polarity protection Galvanic/ Electrical isolated Power consumption: 120W (max)

Dimensions	307.5mm (L) x 209mm (W) x 65.9mm (D)

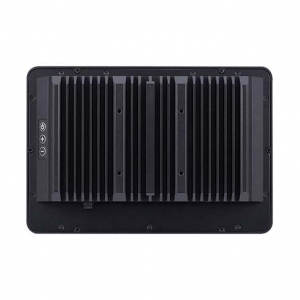

Construction	Aluminum / Metal chassis with fanless design

Environment	Operating temperature: 0°C to 55°C Storage temperature: -30°C to 75°C Operating humidity: 10%~95%, non-condensing Vibration: Compliance with EN60945 Protected B Vibration compliance with IEC 60068-2-64 @Random condition Shock: IEC 60068-2-27 20G, 6 directions Drop (Package): ISO60068-2-32

Certifications	EN 55032/35 UKCA FCC/IC Class A UL/CSA 62368-1, 3rd Ed. IEC 62368-1: 2018, 3rd Ed. IEC 62368-1:2014, 2nd Ed.

Support OS	Primary: Windows 10 & Windows 11

10Q00120T07X1 PPC-120T-RL-i5 i5-1340PE,16G RAM,256G M.2 SSD
10Q00120T08X1 PPC-120T-RL-i3 i3-1320PE,16G RAM,256G M.2 SSD
10Q00120T09X1 PPC-120T-RL-U300E U300E,16G RAM,256G M.2 SSD
