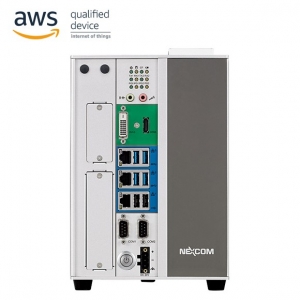

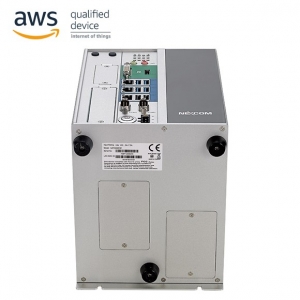

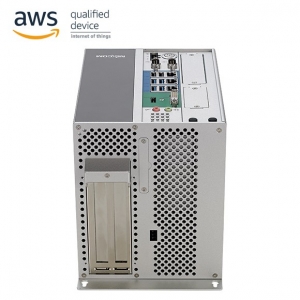

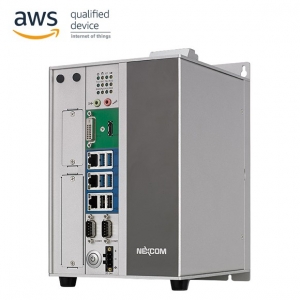

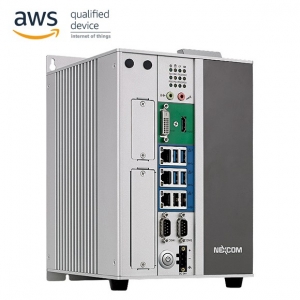

Máy tính công nghiệp NIFE 300P2

Support 6th generation Intel® Core™ i7/i5/i3 LGA socket type processors
- Core™ i7-6700TE, Quad Core, 2.4GHz, 8M Cache (maximum frequency 3.4GHz if turbo boost enabled)
- Core™ i5-6500TE, Quad Core, 2.3GHz, 6M Cache (maximum frequency 3.3GHz if turbo boost enabled)
- Core™ i3-6100TE, Dual Core, 2.7GHz, 4M Cache (no turbo boost)
- Pentium G4400TE, Dual Core, 2.4GHz, 3M Cache (no turbo boost)
- Celeron® G3900TE, Dual Core, 2.3GHz, 2M Cache (no turbo boost)

2 x DDR4 SO-DIMM socket, supports 2133MHz and up to 8GB with un-buffered and non-ECC type

Dual independent display
HDMI + DVI-D

Front I/O Interface Status LEDs

1 x battery/ 1 x C-Fast LEDs

4 x GPO status/ 2 x Tx/ Rx LEDs

1 x power/ 1 x HDD access LEDs

Front I/O Interface

1 x ATX power on/ off switch

1 x HDMI and 1 x DVI-D

3 x USB 3.0 ports (900mA per each)

2 x USB 2.0 ports (500mA per each)

1 x Line-out and 1 x Mic-in

2 x Antenna holes for WI-FI/ GSM

1 x Front access 2.5” HDD tray

1 x Mini PCIe expansion support optional modules

2 x RS232/422/485 auto with 2.5KV Isolation

3 x Intel® I210IT GbE LAN ports, support WoL, teaming and PXE

Top I/O Interface

1 x 3-pin remote switch

1 x CFast expansion

1 x SIM card

Storage Device

1 x CFast (SATA 3.0)

1 x 2.5” HDD (external, SATA 3.0)

1 x 2.5” HDD (internal, SATA 3.0)

1 x mSATA (via internal mini PCIe socket)

Expansion Slot

NIFE 300: no expansion

NIFE 300P2: two PCI expansion slots
- Add-on card length: 180mm max
- Power consumption: 10W/slot max

NIFE 300P2E: one PCI expansion slot, and one PCIe x8 expansion slot
- Add-on card length: 180mm max
- Power consumption: 10W/slot max

NIFE 300P3: two PCI expansion slots and one PCIe x8 expansion slot
- Add-on card length: 180mm max
- Power consumption: 10W/slot max

NIFE 300E3: one PCIe x8 and two PCIe x4 expansion slot
- Add-on card length: 180mm max
- Power consumption: 10W/slot max

NIFE 300E16: one PCIe x16 expansion slot (fan kit installed)
- Add-on card length: 180mm
- Power consumption: 60W/slot max

Power Requirement

AT/ ATX power mode (default with ATX power mode)

Power input: typical +24VDC +/- 20%, with reverse polarity protection

Power adapter: optional AC to DC power adapter (+24Vdc, 120W or 180W)

Dimensions

NIFE300: 90 mm(W) x 185mm (D) x 251mm (H)

NIFE300P2: 155 mm(W) x 185mm (D) x 251mm (H)

NIFE300P2E: 155 mm(W) x 185mm (D) x 251mm (H)

NIFE300E16: 155 mm(W) x 185mm (D) x 251mm (H)

NIFE300P3: 175 mm(W) x 185mm (D) x 251mm (H)

Construction

Aluminum and metal chassis with front access design

Environment

Operating Temperature:
Ambient with air flow: -5°C to 55°C
according to IEC60068-2-1, IEC60068-2-2, IEC60068-2-14)

Storage Temperature: -20°C to 85°C

Relative Humidity: 10% to 93% (non-condensing)

Shock Protection:
- HDD: 20G, half sine, 11ms, IEC60068-27
- CFast: 50G, half sine, 11ms, IEC60068-27

Vibration protection w/HDD condition:
- Random: 0.5Grms @ 5~500 Hz, IEC60068-2-64
- Sinusoidal: 0.5Grms @ 5~500 Hz, IEC60068-2-64

CE Approval
- EN61000-4-2
- EN61000-4-4

FCC Class A

LVD

Windows 7 32-bit and 64-bit

Windows 10 Enterprise 64-bit
