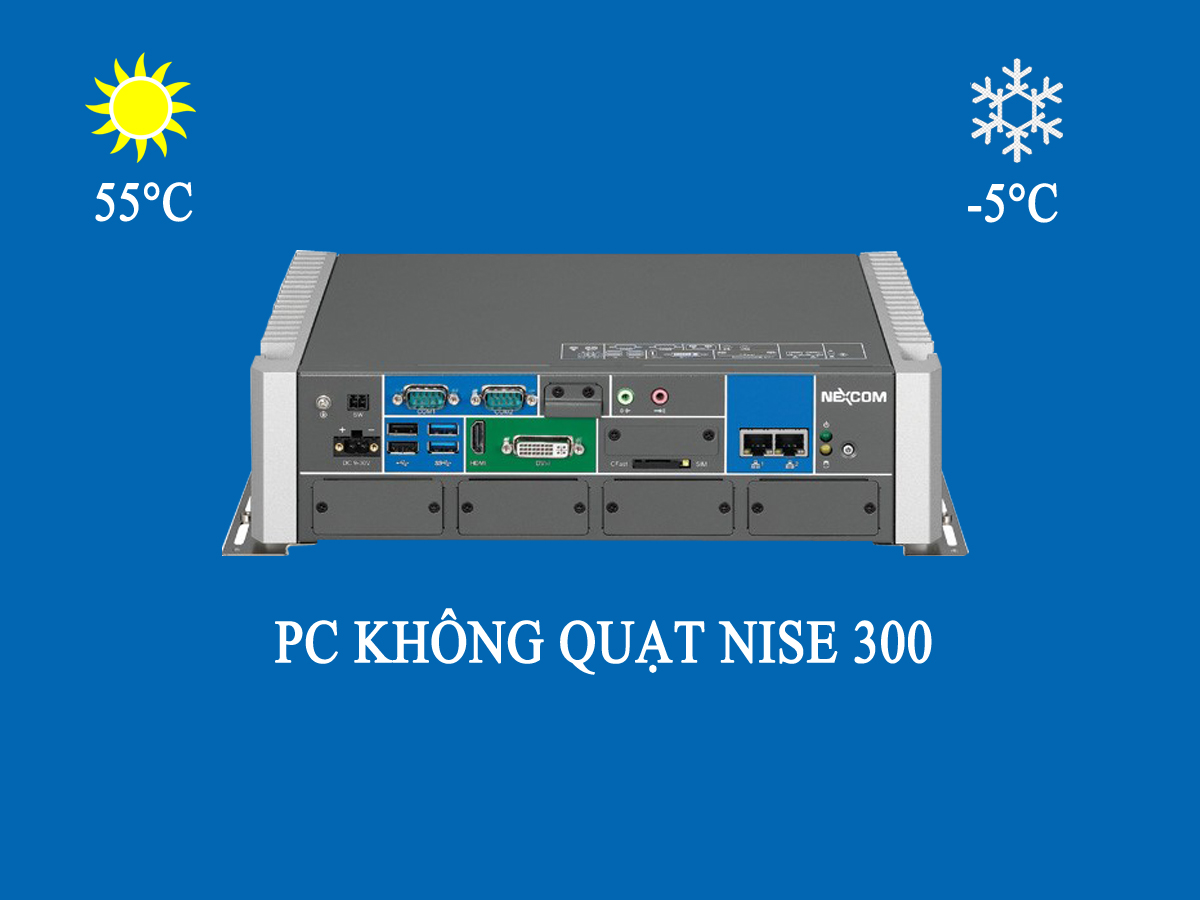

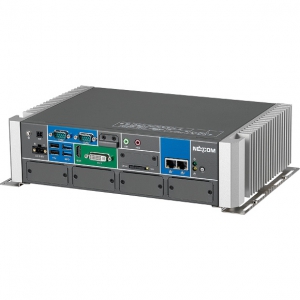

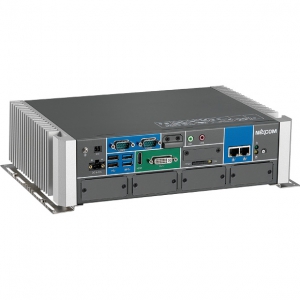

Máy tính công nghiệp NISE 300

CPU Support

Onboard BGA type 4th generation Intel® Core™ i7/i3/i5 processors
- Core™ i7-4712HQ, Quad Core™, 2.3GHz, Max Turbo Frequency 3.3 GHz
- Core™ i5-4402E, Dual Core™, 1.6GHz, Max Turbo Frequency 2.70 GHz (onboard default)
- Core™ i3-4112E, Dual Core™, 1.8GHz
- Celeron 2002E, Dual Core™, 1.5GHz

Mobile Intel® QM87 PCH

Turbo-boost disabled by default

2 x DDR3/ DDR3L SO-DIMM Socket, support up to 8GB DDR3/ DDR3L 1333/ 1600 RAM, un-buffered and non-ECC

Display Option

Three Independent Display
- VGA+DVI-D (Through DVI-I Y Cable) + HDMI

Dual Independent Display
- DVI-D + VGA
- HDMI + VGA

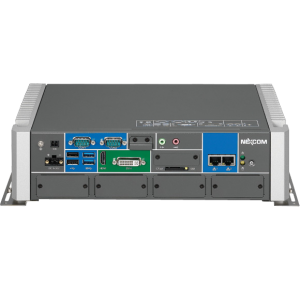

Front I/O Interface

ATX power on/ off switch

1 x Remote Power ON/OFF Switch

1 x Power Status/ 1 x HDD Access LEDs

2 x USB3.0 ports (Blue Color, 900mA per each)

2 x USB2.0 Ports (500mA per each)

1 x DVI-I, 1 x HDMI

2 x DB9 for COM1 & COM2
- support RS232/ 422/ 485 with Auto Flow Control
- support 5V/12V/ Ring function by jumper setting

2 x Intel® 82574L GbE LAN Ports, Support PXE/Teaming/WoL

1 x External CFast socket

1 x SIM Card holder

1 x External RTC Li-ion Battery holder

1 x Line out and 1 x Mic-in

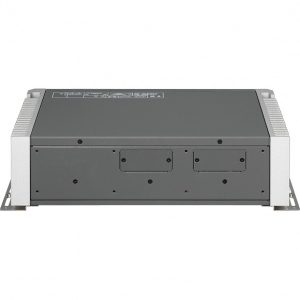

I/O Interface - Rear

4 x GPI and 4 GPO (5V, TTL Type)

4 x COM Ports Box Header (RS232 only)

1 x USB 2.0 Internal Connector, for USB dongle

2 x USB 2.0 Internal Box Header

Storage Device

1 x CFast (SATA 3.0)

1 x mSATA (SATA 3.0)

2 x 2.5” HDD (SATA 3.0)

Storage Device

1 x mini-PCIe socket for GSM/ Wi-Fi
1 x mini-PCIe socket for mSATA
4 x mini-PCIe socket for expansion modules

Expansion Slot

2 x Mini-PCIe socket for optional Wi-Fi/4G LTE/3.5GNISE 2420: Two PCI Expansion
- Add-on card length: 176mm max.
- Power consumption: 10W/ slot max.

Power Requirement

ATX Power Mode

Power input: +9V and +30V DC input

Power adapter: Optional AC to DC power adapter (+19Vdc, 120W)

Dimensions

310mm (W) x 212mm (D) x 80mm (H) without Wall-Mount bracket

Construction

Aluminum and Metal Chassis with fanless design

Operating Temperature:
Ambient with air flow: -5°C to 55°C
(According to IEC60068-2-1, IEC60068-2-2, IEC60068-2-14)

Storage Temperature: -40°C to 85°C

Relative Humidity: 95% at 40°C

Shock Protection:
HDD: 20G, half sine, 11ms, IEC60068-2-27
CFast: 50G, half sine, 11ms, IEC60068-2-27

Vibration Protection w/ HDD Condition:
Random: 0.5Grms @ 5~500 Hz, IEC60068-2-64
Sinusoidal: 0.5Grms @ 5~500 Hz, IEC60068-2-6

Certifications

CE

FCC Class A

OS Support Lists

 Windows 7 32bits and 64bits

 Windows 8.1 32 bits and 64 bits
