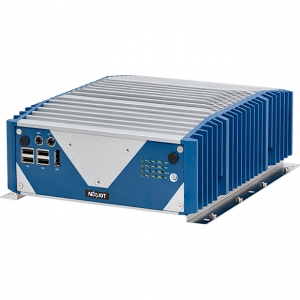

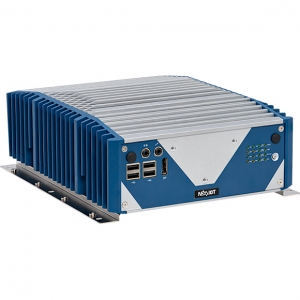

Máy tính công nghiệp NISE 3910E-A

13th/12th Generation Intel® Core™ i9/i7/i5/i3 Industrial Automation Fanless System

Giá: Liên hệ

Tính năng chính:

Support 13/12th Gen Intel® Core™ i9/i7/i5/i3 LGA1700 socket type embedded processor
Intel® Q670E PCH
Support 2 x DDR5 SO-DIMM, up to 64GB
4 x Intel® i226-IT LAN ports, supports WoL, teaming, and PXE
1 x DP, 1 x HDMI®, and 1 x VGA with independent display
1 x M.2 3042/3052 Key B supports LTE/5G module
1 x Outside accessible M.2 2242 Key M with PCIe x4, supports NVMe
6 x USB 3.2 Gen 1, 4 x USB 2.0
2 x Isolated RS-232/422/485 with auto-flow and 1 x RS-232
1 x Mini PCIe slot, supports optional Wi-Fi, 3.5G, 4G LTE
1 x 2.5” SATA HDD/SSD
Support +24V DC input; support ATX power mode
TPM 2.0 default onboard

Báo giá sản phẩm

Integrated with 13/12th Gen Intel^® Core™ i9/i7/i5/i3 processor, NISE 3910E-A is the fanless PC designed for industrial automation and edge computing which demand high CPU and graphics performance. NISE 3910E-A supports up to 64G DDR5 memory and have several options on storage devices like M.2, HDD or SSD. NISE 3910E-A supports wide range of DC input +12V to 30V DC input, and can be operated in an extended temperature range between -20 to 60 Celsius degree. For extended module availability, NISE 3910E-A is also equipped with one internal mini-PCIe sockets to support IoT wireless connectivity applications (support optional Wi-Fi, 3.5G, 4G LTE modules), also 5G module via M.2 3052 Key B.

CPU Support	Support 13th/12th Gen Intel® Core™ i9/i7/i5/i3 processor (embedded) - Intel® Core™ i9-13900TE, 8P+16E, 1.0GHz, 36M Cache - Intel® Core™ i7-13700TE, 8P+8E, 1.1GHz, 30M Cache - Intel® Core™ i5-13500TE, 6P+8E, 1.3GHz, 24M Cache - Intel® Core™ i3-13100TE, 4P+4E, 2.4GHz, 12M Cache - Intel® Core™ i9-12900TE, 8P+8E, 1.1GHz, 30M Cache - Intel® Core™ i7-12700TE, 8P+4E, 1.4GHz, 25M Cache - Intel® Core™ i5-12500TE, 6P+6E, 1.9GHz, 18M Cache - Intel® Core™ i3-12100TE, 4P+4E, 2.1GHz, 12M Cache
Main Memory	DDR5 4800 SO-DIMM, supports up to 64GB
Display Option	Three independent display: HDMI®, DP, VGA
Audio	HD Audio Codec, Realtek ALC897

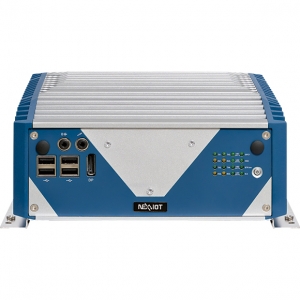

I/O Interface-Front	1 x ATX power on/off switchLED indicators: - 4 x LAN active - 1 x GPO status - 4 x COM Tx/Rx - 1 x HDD/SSD status - 1 x Battery low - M.21 x DP 2 x Antenna hole 1 x Outside accessible M.2 2242 Key M (PCIe x4, SATA) 1 x SIM card holder 4 x USB 2.0 Type-A (500mA/port) 1 x Line out and 1 x Mic in

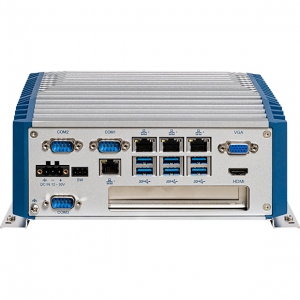

I/O Interface-Rear	1 x HDMI®1 x VGA port 6 x USB 3.2 Gen1 Type A (900mA per each) 4 x 2.5GbE RJ45 port, Intel® I226-IT, supports WoL, teaming & PXE 2 x Isolated RS-232/422/485 1 x RS-232 1 x 3-pin DC input, supports +12 to 30V DC input 1 x 3-pin remote power on/off switch
I/O Interface-Internal	8 x GPI and 8 x GPO (5V, TTL type) 1 x M.2 Key B 2242/3042/3052 (PCIe x2, USB 3.0) 1 x Mini PCIe (PCIe x1, USB 3.0)
Storage Device	1 x 2.5" HDD/SSD 1 x M.2 2242 Key M, 1 x M.2 2242 Key B
Expansion Slot	1 x PCIe x4 up to 25W/slot, 169mm Max. length 1 x Mini PCIe (PCIe x1, USB 3.0)
Power Requirements	AT/ATX power mode (Default ATX mode) Power input: +12~30 V DC
Dimensions	215mm (W) x 272mm (D) x 102mm (H) without wall-mount bracket (8.46” x 10.7” x 4.02”)
Construction	Aluminum and metal chassis with a fanless design
Environment	Operating temperature: Ambient with air flow: -20°C~60°C (according to IEC 60068-2-1, IEC 60068-2-2, IEC 60068-2-14) Storage temperature: -20°C~80°C Relative humidity: 10%~95% (non-condensing) Shock protection: - HDD: 20G@wallmount, half sine, 11ms (operation), IEC 600682-27 - SSD: 50G@wallmount, half sine, 11ms (operation), IEC 600682-27 Vibration protection: - Random: 0.5Grms@5~500Hz, IEC 60068-2-64 - Sinusoidal: 0.5Grms@5~500Hz, IEC 60068-2-6
Certifications	CE FCC Class A
OS Support Lists	Windows 11 Windows 10 Enterprise, 64-bit

NISE 3910E-A (P/N: 10J00391011XE)
Intel^® 13th/12th Gen Core™ i9/i7/i5/i3 fanless system with one PCIe x4
expansion

24V, 120W AC to DC power adapter w/o power cord
(P/N: 7400120029X00)

24V, 180W AC to DC power adapter w/o power cord
(P/N: 7400180012X00)
