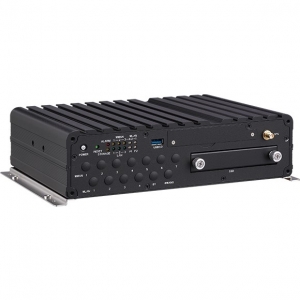

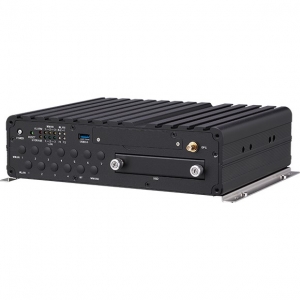

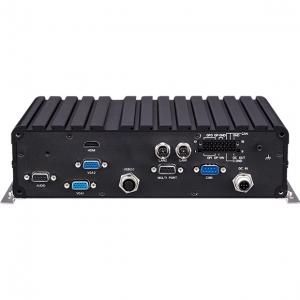

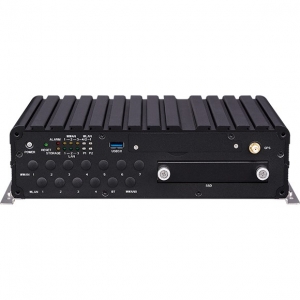

nROK 6221

Chipset Intel® HD graphics 505

1 x HDMI 1.4b up to 4096 x 2160 @30Hz

2 x VGA up to 1920 x 1200 @60Hz

1 x 2.5” SATA 3.0 external SSD (compatible with 15mm drive)

1 x CFast (externally accessible), optional mSATA

1 x Full size mini-PCIe socket (USB 2.0) with 2 x external SIM

1 x Full size mini-PCIe socket (USB 2.0 + PCIe 2.0), BOM optional full size mini-PCIe socket (USB 2.0) with 2 x external SIM

1 x Full size mini-PCIe socket (USB 2.0 + PCIe 2.0)

1 x M.2 3042 key B (USB 2.0, USB 3.0) with 2 x external SIM

1 x M.2 3042/3050/3052 key B (USB 2.0, USB 3.0, PCIe 2.0 (BOM optional) with 2 x external SIM

1 x Default u-blox NEO-M8N GNSS for GPS/Glonass/QZSS/Galileo/BeidouOptional M8U modules with dead reckoning available

G Sensor (3-axis, 10-bit resolution)

12 x LED indicators (including 2 x programmable LED)

6 x Externally accessible SIM card sockets with cover

1 x 2.5" removable SSD tray

1 x Externally accessible CFast card socket with cover

1 x Reset button

1 x Power button

1 x USB 3.0 type A (5V/0.9A)

14 x SMA antenna

1 x Circle type DC input with ignition
- 24/36 VDC (9~48 VDC), non-isolation

1 x M12 with two USB 2.0

2 x M12 X-coded LAN port, 10/100/1000 Mbps

1 x DB9 (AUDIO), female for 1 x Mic-in, 2 x Line-out

2 x VGA

1 x HDMI 1.4b

1 x DB9 (COM) full RS232 (isolation)

1 x DB9 (MULTI-PORT) for RS232 TX/RX, RS485 (all w/ isolation), USB 2.0

1 x 18-pin terminal block
- 1 x CAN Bus 2.0B (onboard)
- 4 x DI with isolation
- 4 x DO with isolation
- Vin, GND for GPIO

Power input 24/36 VDC w/o isolation

Selectable boot-up & shut-down voltage for low power protection by software

Setting 8-level power on/off delay time by software

Support S3/S4 suspend mode10~255 seconds WDT support, setup by software

SDK (Windows/Linux) including utility and sample code

Operating temperatures
- 40°C to 70°C (w/ industrial SSD) with airflow

Storage temperatures: -40°C to 80°C

Relative humidity: 10% to 90% (non-condensing)

Vibration (random)
- 2g@5~500 Hz (in operation, SSD)

Vibration (SSD)
- Operating: MIL-STD-810G, Method 514.6, Category 4, common carrier US highway truck vibration exposure
- Storage: MIL-STD-810G, Method 514.6, Category 24, minimum integrity testShock (SSD)
- Operating: MIL-STD-810G, Method 516.6, Procedure I, functional shock=40g
- Non-operating: MIL-STD-810G, Method 516.6, Procedure V, crash hazard shock test=75g

CEFCC Class A

EN50155 conformity: 2017
- Ambient temperature EN 50155, class OT4 (-40~70°C)
- Shock and vibration IEC 61373 class B
- Interruptions of voltage supply class S1
- Supply change over class C1, C2
- EMC EN 50121-3-2: 2016
