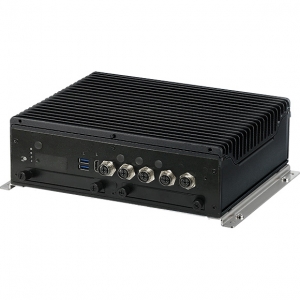

nROK 7270 (Preliminary)

Intel® 12/13th Gen Core™ CPU (65W/35W), Chipset: Intel R680E, Graphics: Intel® UHD Graphics770,1.55GHz

2 x 262-pin SO-DIMM, DDR5 4800MHz64GB in max., ECC & dual-channel support

Video Output

1 x HDMI 2.0a/b, up to 3840 x 2160@60Hz1 x VGA, up to 1920 x 1200@60Hz

Storage

2 x 2.5” SATA 3.0 external SSD (15mm height, removable)

1 x mSATA (occupied mini-PCIe slot)

2 x M.2 Key B (occupied M.2 socket)

1 x microSD card slot, SDXC v3.01

1 x Full size mini-PCIe socket (USB 2.0, PCIe 3.0/SATA 3.0)
2 x M.2 3042/3050/3052 Key B socket (USB 2.0, USB 3.2 Gen 2, SATA 3.0) for LTE/5G NR module with 1 x external dual nano-SIMs
1 x M.2 2230 Key E socket (USB 2.0, PCIe 3.0 x2), BOM optional M.2 2230 Key E socket (USB 2.0, PCIe 3.0, PCIe 3.0)
Additional expansion for nROK 7270-A-H:
- 1 x Full size mini-PCIe socket (USB 2.0, PCIe 3.0), BOM optional M.2 2230 Key E socket (USB 2.0, PCIe 3.0)
- 2 x M.2 3042/3050/3052 Key B socket (USB 2.0, USB 3.2 Gen 1) for LTE/5G NR module with 2 x external dual nano-SIMs

GNSS and Onboard Sensor

1 x Default U-blox NEO-M9N GNSS module for GPS+QZSS /Glonass/Galileo/Beidou

1 x 3D accelerometer and 3D gyroscope

LAN and Power over Ethernet

nROK 7270-AC4/nROK 7270-AC4-C8S:
- 1-port LAN M12 X-coded, 10/100/1000/2500 Mbps Intel® I226 GbE (support WOL)
- 4-Port Independent LAN M12 X-coded, 10/100/1000/2500 Mbps I226-IT GbE, PoE 802.3af/at, max. 60W (non-isolation)nROK 7270-A/nROK 7270-A-H:
- 2-port LAN M12 X-coded, 10/100/1000/2500 Mbps Intel® I226 GbE (support WOL)Additional PoE for nROK 7270-AC4-C8S:
- 8-port LAN M12 X-coded, 10/100/1000 Mbps Ethernet Switch GbE, PoE 802.3 af/at, max. 60W (isolation)

TPM 2.0: InfineonSLB9665TT2.0FW5.62

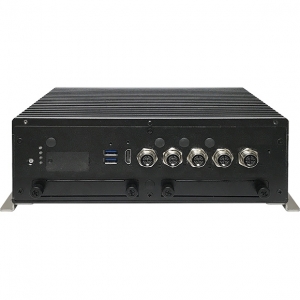

I/O Interface-Front

4 x LED indicators (storage/WWAN/WLAN/programmable)

1 x HDMI 2.0a/b2 x USB 3.2 Gen 2 type A (5V/0.9A)

2 x Externally accessible dual nano-SIM card sockets with cover

1 x microSD card slot with cover

2 x 2.5” removable SSD tray

1 x Reset button

1 x Power buttonn

ROK 7270-AC4/nROK 7270-AC4-C8S:
- 1 x M12 X-coded LAN port
- 4 x M12 X-coded PoE 802.3af/at

nROK 7270-A/nROK 7270-A-H:
- 2 x M12 X-coded LAN port

1 x Fan power connector

1 x SMA connector for GNSS

4 x SMA connector holes for WWAN

I/O Interface-Rear

1 x VGA

1 x M12 A-coded 8-pin for 2 x USB 2.0

1 x M8 (Audio) for 1 x Mic-in, 1 x Line-out

2 x DB9 (COM1/2) for full RS232/422/485 (isolation)

1 x DB15 (CAN/DIO)
- 2 x Isolated CAN FD, compatible with CAN2.0A/2.0B
- 4 x DI and 4 x DO (isolation), power in source for DIO isolation, 14~48VDC

1 x M12 K-coded 5-pin for power input

1 x Connector 2-pin for ignition input

4 x SMA connector holes for WWAN

2 x RP-SMA connector holes for WLAN

8 x PoE 802.3af/at, M12 X-coded (nROK 7270-AC4-C8S)

2 x Externally accessible dual nano-SIM card sockets with cover, 8 x SMA connector holes for WWAN, and 2 x RP-SMA connector holes for WLAN (nROK 7270-A-H)

Power Management & Software Support

Power input 24VDC/36VDC (14~48VDC) w/o isolation

Selectable boot-up & shut-down voltage for low power protection by software

Setting 8-level power on/off delay time by software

Support S3/S4 suspend mode10~255 seconds WDT support, setup by software

SDK (Windows/Linux) including utility and sample code

Operating System

Windows 11/Windows 10/Linux

nROK 7270-AC4: 6.3kg (TBD)

nROK 7270-A: (TBD)nROK 7270-AC4-C8S: (TBD)

nROK 7270-A-H: (TBD)

Operating temperatures
- EN 50155, class OT3 (-35°C ~70°C), 85°C for 10 minutes (w/35W TDP CPU, 60W PoE, 8GB memory, industrial SSD) with air flowStorage temperatures: -40°C to 80°CRelative humidity: 90% (non-condensing)
- Vibration (random)
- 2g@5~500 Hz (in operation, SSD)Vibration (SSD)
- Operating: MIL-STD-810H, Method 514.8C, Procedure 1,Category 4, common carrier US highway truck vibration exposure
- Storage: MIL-STD-810H, Method 514.8E, Procedure 1,Category 24, minimum integrity testShock (SSD)
- Operating: MIL-STD-810H, Method 516.8, Procedure I,functional shock=40g
- Non-operating: MIL-STD-810H, Method 516.8, Procedure V, crash hazard shock test=75g

CE/UKCA/FCC Class AEN 50155: 2017
- Ambient temperature EN 50155, Class OT3 (-35°C ~70°C), 85°C for 10 minutes
- Interruptions of voltage supply class S1
- Supply change over class C1
- EMC EN 50121-1: 2017, EN 50121-3-2: 2016+A1: 2019
- Environment EN 60068-2-1, EN 60068-2-2, EN 60068-2-30
- Shock and vibration IEC 61373 Class B
- Protective coating class PC1 (PC2, by request)EN 45545-2: 2020 (PCB)

Intel® Core™ CPU:
- i9-12900E/12900TE, Core: 16c, Max Freq.: 5.0/4.8GHz, TDP: 65W/35W
- i7-12700E/12700TE, Core: 12c, Max Freq.: 4.8/4.6GHz, TDP: 65W/35W
- i5-12500E/12500TE, Core: 6c, Max Freq.: 4.5/4.3GHz, TDP: 65W/35W
- i3-12100E/12100TE, Core: 4c, Max Freq.: 4.2/4.0GHz, TDP: 60W/35WSO-DIMM DDR5-4800MHz:
- 64GB (in the future), 32GB, 16GB, 8GBFAN Kit
- Model No.: VTK FAN120-01, Description: 120mmx120mm, 60W heat dissipate, P/N: 10VK00FAN00X0
* Note: 65W CPU should be bundled with fan kit
