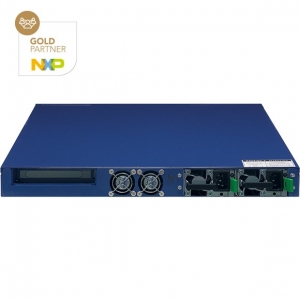

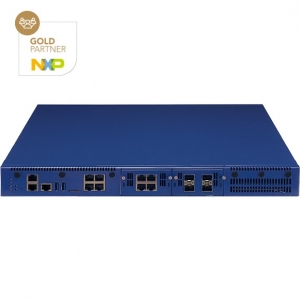

NSA 6310

1U Rackmount uCPE w/ NXP® Layerscape® LX2160A SoC Processors, 4 x GbE RJ45 và 2 mô-đun SerDes LAN

Giá: Liên hệ

Tính năng chính:

NXP® Layerscape® LX2160A SoC, BGA type
4 x DDR4-3200 ECC-DIMM
1 x 2.5 SSD, 1 x M.2 2280
PCIe Gen3 x8 with SR-IOV
Dual boot device
Enhancing UEFI
Support secure boot and optional TPM
2 x SerDes LAN modules support 25G/10G/1G
4 x GbE RJ45
Optional IEEE1588 PTP
Optional BMC support with manager port
Redundant power supply
Optional PoE at/af support
Operating system: NXP® LSDK (Ubuntu userland)

Báo giá sản phẩm

PDF

Our 1U rackmount uCPE NSA 6310, based on the NXP® Layerscape® LX2160A SoC, helps telecom companies build virtualization environments. The device combines sixteen ARM Cortex®-A72 processor cores with high-performance data path accelerators, IEEE 1588, and BMC for networking and telecom/datacom uses. The 1U rackmount uCPE’s flexible I/O networking design supports 25G/10G/1G speeds, while its architecture supports FPGA or GPU cards for edge computing.

Main Board	NXP® Layerscape® LX2160A SoC, BGA typeLX2160A, 16 coresLX2120A, 12 coresLX2080A, 8 cores
Main Memory	4 x DDR4 3100 ECC-DIMM sockets, up to 64GB
Storage	1 x 2.5” internal SSD/HDD bays 1 x M.2 2280 B key, supports SATA signal
Front I/O	4 x LED: Power/System/HDD/Error Button: Reset 1 x Console port: RJ45 x1 2 x Management port: RJ45 x2 (LX2160 and BMC) 2 x USB 3.0 type-A port 4 x GbE RJ45 ports 1 x Micro SIM card slot 2 x SerDes LAN module slots 1 x PCI-Express card slot 2 x Fixed smart fans 2 x Power inlets
Interface Internal	1 x mini-PCIe for Wi-Fi 1 x M.2 2280 B key with SIM slot for LTE 1 x SO-DIMM slot for NEXCOM BMC module SPI I/O pin-heard for GPS module SPI I/O pin-heard for TPM Micro SD slot for RMA
Power	550W 1+1 CRPS redundant power supply (default) 12V/550W + 54V/850W CRPS power supply (for PoE application)
Dimensions and Weight	Chassis dimension (mm): 430 x 480 x 44 Package dimension (mm): 616 x 551 x 175 Without packing: TBD With packing: TBD
Environment	Operating temperature: 0°C~40°C Storage temperature: -20°C~80°C Relative humidity: 10%~90%, non-condensing
Certifications	CE/FCC Class A (planning) Arm Server Ready (planning)

Barebone

NSA 6310 (P/N: 10S00631000X1)
1U NXP^® Layerscape^® LX2160A SoC processor, 16 cores, 4 x 1GbE RJ45 ports and 2 x SerDes 10GbE LAN modules

Model	P/N	Controller	Type	Port Number	Bypass/ Segment	Expansion Slot	Location Slot
NSK7602	20SK0760200X1	Marvell 88X3340P	SerDes x4	4 x 10GbE RJ45	None	None	1
NSK7100	20SK0710000X1	Inphi CS4223	SerDes x4	4 x SFP+	None	None	2

NSA 6310-1GE (P/N: 10S00631001X1)
1U NXP^® Layerscape^® LX2160A SoC processor, 16 cores, 4 x 1GbE RJ45 ports and 2 x SerDes 1GbE LAN modules

Model	P/N	Controller	Type	Port Number	Bypass/ Segment	Expansion Slot	Location Slot
NSK7601	20SK0760100X1	Marvell 88E1543	SerDes x4	4 x 1GbE RJ45	None	None	All slots
